VSWR Wizardry

There is nothing magical about VSWR; however, the ability to understand it better is a great skill. VSWR (also pronounced “vizwar”) is an acronym for Voltage Standing Wave Ratio, most commonly known as Standing Wave Ratio (SWR). It indicates the impact of a mismatch a signal encounters in an RF system.



Understanding Voltage Standing Wave Ratio: The Basics

Voltage Standing Wave Ratio (VSWR) is a parameter in radio frequency (RF) engineering that represents the efficiency of power transmission in a transmission line. It is defined as the ratio of the maximum voltage to the minimum voltage along the transmission line. This illustrates how well the load is matched to the transmission line.

A standing wave ratio (SWR) is formed along a transmission line from a power source to a load. The voltage and the currents interact to form crests and troughs. If the impedance in the transmission line is not matched to the load (AKA the impedance measured in Ohms), a reflected waveform results that propagates back to the source.

VSWR is expressed in ratios. In a perfect world, the ratio could have been 1:1 — the perfect match. But, just like in a marriage, attaining this ratio would be a unicorn phenomenon. WEBB aims to produce antennas with VSWR ratios below 1.5:1. A 2:1 ratio is still generally acceptable. Still, if the VSWR goes above 3:1 on the reading, 25% of the transmitted power is reflected back to the source.

In essence, a VSWR of 1:1 indicates perfect matching, where all the energy is transmitted to the load without reflections. As the ratio increases, it signifies greater levels of reflected power, which can lead to inefficiencies and potential damage to equipment.



The Importance of VSWR in Signal Integrity

VSWR is a vital metric for maintaining signal integrity in communication systems. High VSWR values can lead to signal distortion, reduced power output, and increased susceptibility to interference, all of which can degrade the overall performance of RF systems.

If you have a receiver multi-coupler or hybrid coupler, adding a dummy load to every other port you are not using is a clever idea in case you accidentally get reflected power coming back into the device. The dummy load would absorb the heat, protecting your device and equipment from damage.

By ensuring low VSWR ratios, WEBB engineers can help maximise signal transmission efficiency, minimise losses, and enhance the reliability of communication links. This is especially important in high-frequency applications, where even minor reflections can significantly impact system performance.



Common Causes of High VSWR and Their Impact

Several factors can contribute to a high VSWR, including improper cable connections, damaged cables, mismatched impedance, and poor-quality connectors. Each of these issues can create points of reflection that disrupt the smooth flow of the signal.

Image: silhouette of a man in front of a fire

The biggest problem installers may face in big antenna assembly plants is that the reflected power could mess up their entire system. Coax cables could melt inside because of the heat coming back and cause the base station to explode. For this reason, having the correct VSWR ratio in your setup could be crucial to running a cool plant.

The impact of high VSWR can be profound, leading to component overheating, signal loss, and, in severe cases, equipment failure. Understanding and addressing these causes is essential for maintaining optimal system performance.



Techniques for Measuring and Optimizing VSWR

Measuring VSWR typically involves using specialised equipment such as a VSWR meter or a vector network analyzer (VNA). These tools allow engineers to assess the standing wave patterns and determine the ratio accurately.

For example, a folded dipole antenna with an impedance of 300 Ohms is connected to a transmission line with a characteristic impedance of 50 Ohms. The system mismatch causes signal power to be reflected back from the antenna down the transmission line to the source. Other components can be added to the RF system, such as a balun that transforms the 50 Ohms to 300 Ohms, thereby improving the system mismatch. An antenna tuner/tuning unit (ATU) could be added to an HF network to improve the mismatch.

The VSWR ratio for higher frequency bands, such as VHF, UHF or higher, depends on the antenna design type. It is built into the antenna. For more information, consult the specifications of each antenna supplied by WEBB.

Techniques such as using matching networks, adjusting cable lengths, and ensuring high-quality connectors can be employed to optimise VSWR. Regular maintenance and testing are also crucial to identify and rectify any issues that arise over time.



Future Trends and Innovations in VSWR Management

The future of VSWR management is leaning toward integrating smart technologies and automation. Advanced monitoring systems can provide real-time data on VSWR, enabling proactive adjustments before problems escalate.

Moreover, innovations in materials and design methodologies are leading to more efficient transmission lines and components that inherently maintain lower VSWR levels. As communication technologies evolve, so will the strategies for managing VSWR, ensuring enhanced performance and reliability in increasingly complex systems.

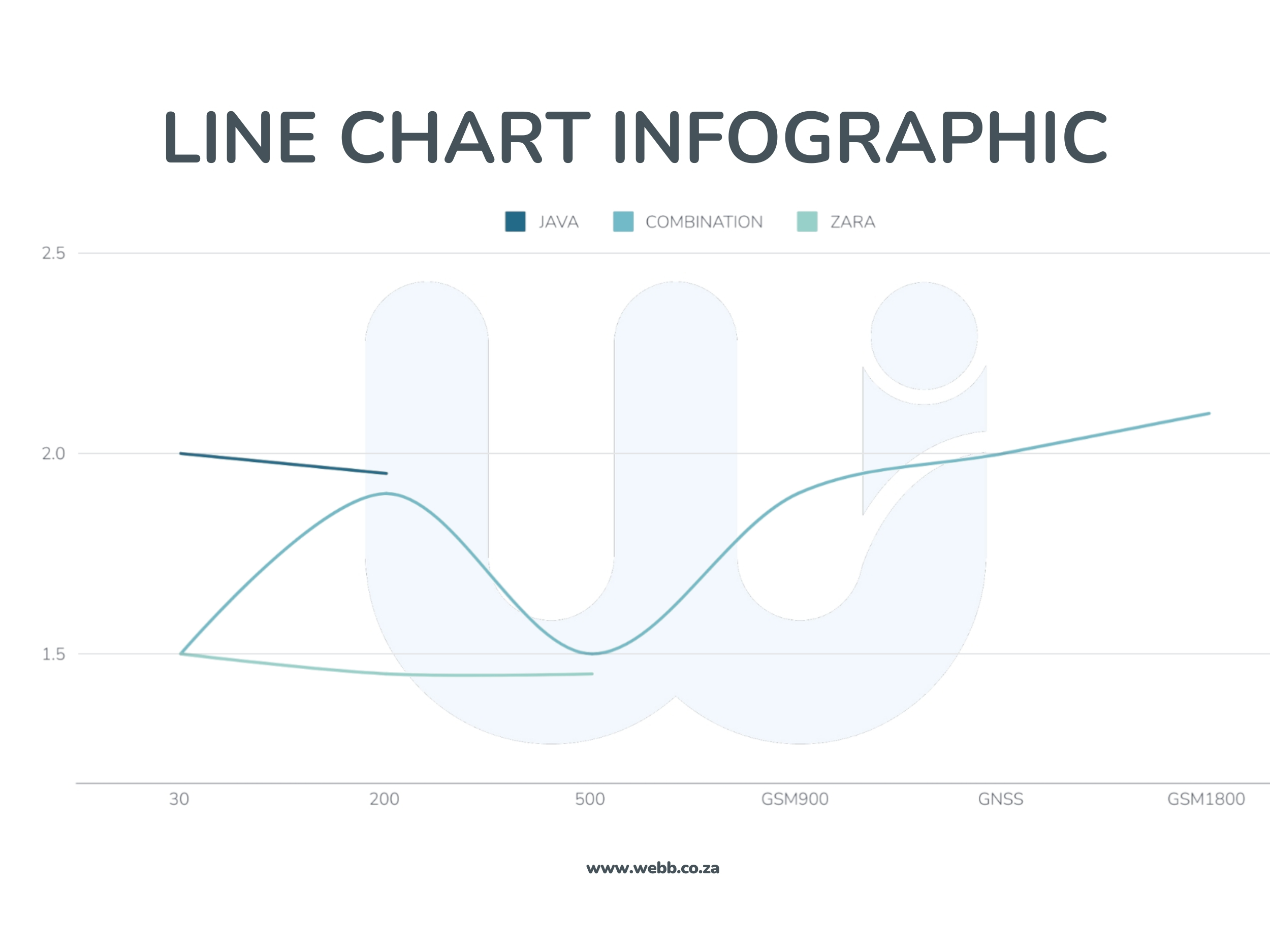

Thank you for your interest in this topic and for taking the time to familiarise yourself with this subject. As a token of our appreciation, you are welcome to this complimentary VSWR Desktop Wallpaper.jpg
