Elite 50 1/4-Wave Mobile Antenna 54…470 MHz 0dB
R966.00 incl VAT
Elite 50 1/4-Wave Mobile Antenna 54…470 MHz 0dB
- Description
- Additional information
Description

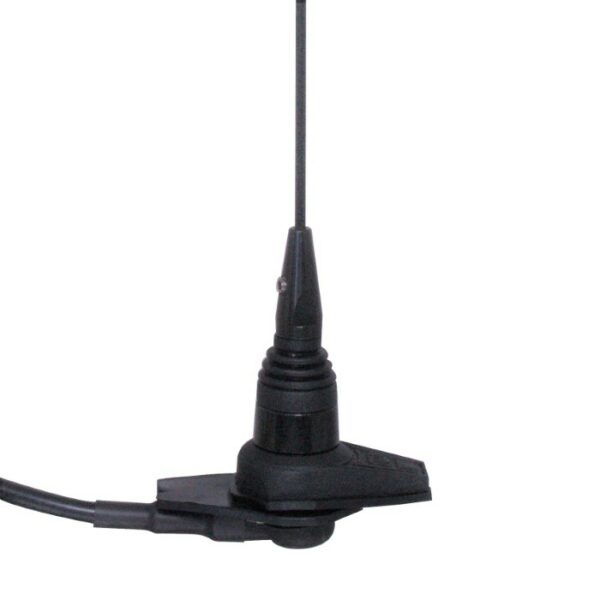

The Elite 50 1/4-Wave Mobile Antenna is a quarter-wave mobile antenna designed to mount inside or outside a vehicle body. It can be tuned between the frequency range from 54 MHz to 470 MHz. The antenna is supplied with a 4 m RG-58 coaxial cable by default. Other sizes are available on request. Please note that you need to order a coax connector separately since it is not supplied with the antenna.
The Elite 50 Mobile Antenna has the following specifications: VSWR of < 1.5:1 across a bandwidth of 1.5 MHz to 9 MHz with a nominal gain of unity (relative to a quarter wavelength radiator) and a rated power of 100 W.
The whip is made of stainless steel and has a mounting hole size of 12 mm. The antenna can radiate all its power in equal directions perpendicular to its axis. The antenna has a black finish.
The antenna can withstand wind velocities of up to 220 km/h. The whip is non-bendable. It can be mounted on vehicles and structures.
When the antenna is mounted on a vehicle, it is recommended to remove it before using equipment such as automatic car wash equipment to avoid damage to the antenna.
Additional information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 5 × 11 × 143 cm |
| Part Number | MJELITE50 |
| Band Selector | |
| Additional Band Option | UHF Telemetry, UHF TETRA, UHF Trunk, VHF HB, VHF MB, VHF Trunk |
| Frequency | 108 — 137 MHz, 138 — 174 MHz, 47 — 68 MHz, 68 — 87.5 MHz, 87.5 — 108 MHz |
| Nominal Gain |
