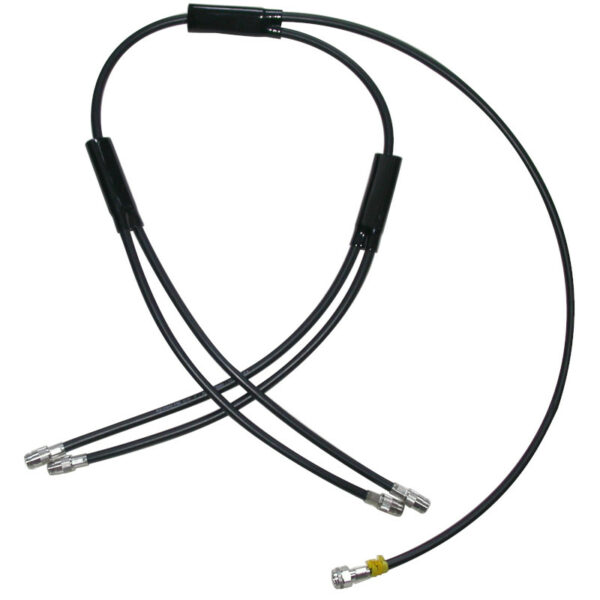

4-Stack VHF Phasing Harnesses
These Four-Stack VHF Phasing Harnesses couple four Antennas together to feed in-phase, keep a low SWR and minimum insertion loss.
Achieve higher Gain or special-shaped Radiation Pattern.
Increase Gain by six decibels (6 dB) by quadrupling the number of antennas.
The branches of the Harness are Impedance transforming sections and must not be shortened.
Extra jumper cable sections may be necessary to reach each Antenna. These sections must be exactly equal in length so that the Antennas are fed in phase.
The Branches are terminated with N Female Connectors and the Feeder End with an N Male Connector. N(m-4.f)
The 4-Stack VHF Phasing Harnesses are fully waterproof.
Additional information
Weight | N/A |
---|---|
Dimensions | N/A |
Part Number | MT4/72, MT4/80, MT4/100, MT4/125, MT4/145, MT4/165, MT4/250 |
Band Selector | |
Additional Band Option | |
Frequency | 108 — 137 MHz, 138 — 174 MHz, 254 — 272 MHz, 68 — 87.5 MHz, 87.5 — 108 MHz |
