Elite 130 Mobile Antenna 132…174 MHz 2 dB
R1,667.50 incl VAT
Moulded Coil 132-174MHz 2dB
- Description
- Additional information
Description
The Elite 130 Mobile Antenna 132…174 MHz 2 dB is a 5/8 wavelength bendable mobile antenna with a moulded coil designed to mount inside or outside a vehicle body. It can be tuned between a frequency range of 132 MHz to 174 MHz.
The antenna is supplied with a 4 m RG-58 coaxial cable by default. Other sizes are available on request.
NB: order a coax connector separately since it is not supplied with the antenna.
The Elite 130 Mobile Antenna has the following specifications: VSWR of < 1.5:1 across a bandwidth of 3 MHz with a nominal gain of 2 dBq (relative to a quarter wavelength radiator) and a rated power of 100 W.
The antenna can withstand wind velocities of up to 220 km/h. The whip is designed to be flexible and does not break easily. It can be mounted on vehicles and structures.

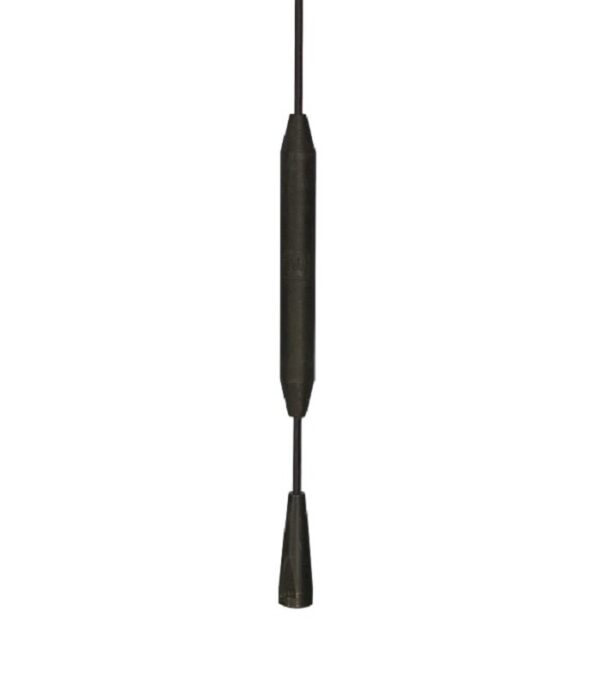

The whip is made of stainless steel and has a mounting hole size of 12 mm. The antenna can radiate all its power in equal directions perpendicular to its axis. The antenna is only available in colour black.

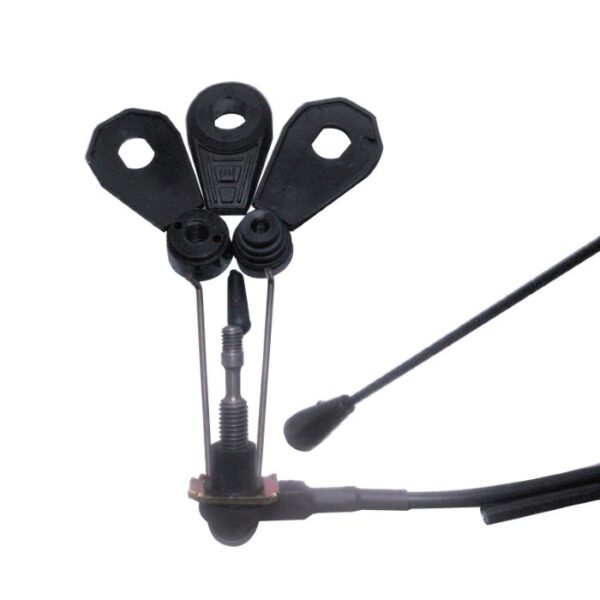

The antenna’s electric field is vertical, while the magnetic field is horizontal. Replacement parts such as bases and whips are available upon request. When the antenna is mounted on a vehicle, it is recommended to remove it before using equipment such as automatic car wash equipment to avoid damage to the antenna.
Additional information
Weight | 0.3 kg |
---|---|
Dimensions | 5 × 11 × 155 cm |
Part Number | MJELITE130MC |
Band Selector | |
Additional Band Option | |
Frequency | |
Nominal Gain |
